TP Link:ROUTER & SWITCH
TP Link

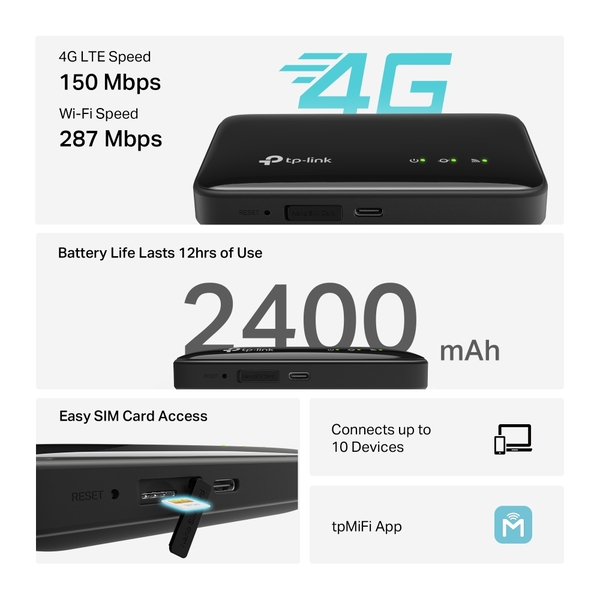

4G LTE supported with up to 150 Mbps download and 50 Mbps upload speeds Wi-Fi 6 with speeds up to 287 Mbps on 2.4 GHz 2400mAh battery for up to 12 working hours Side-mounted SIM access without removing the back cover Supports up to 10 devices simultaneously
The TP-Link M7005 4G Mobile Wi-Fi offers speeds up to 150Mbps download and 287Mbps upload on 2.4GHz Wi-Fi, supporting up to 10 devices simultaneously. Its 2400mAh battery provides up to 12 hours of use. The side-mounted SIM card slot makes it easy to use and highly portable, ideal for travel and working outdoors.
Features:
4G LTE support - download speeds up to 150 Mbps and upload speeds up to 50 Mbps
Wi-Fi 6 - speeds up to 287 Mbps on the 2.4 GHz band
2400mAh battery - up to 12 hours of continuous use
Side-mounted SIM card slot - convenient, no need to remove the back cover.
Connectivity - Supports up to 10 devices simultaneously.
App Control - Easy management and configuration via the tpMiFi app.
4G
Network Type 4G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500MHz)
3G:
HSPA+/HSPA/WCDMA: B1/B5/B8 (2100/850/900MHz)
Download Speed: 150 Mbps
Upload Speed: 50 Mbps
HARDWARE FEATURES
Interface: 1 USB-C port for power supply
1 Nano SIM card slot
Button: Power Button, Reset Button
Power Supply: External 5V/1A
Weight About 118g
Dimensions ( W x D x H ) 3.7×2.2×0.8 in. (94×56.7×19.8 mm)
Antenna Internal Antennas
LED Display Wi-Fi LED, Internet LED, Power LED
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n
Wireless Speeds Up to 287 Mbps
Frequency 2.4 GHz
Reception Sensitivity 11b 11Mbps -89dBm
11g 54Mbps -75.5dBm
11n HT20 MCS7 -73.5dBm
11n HT40 MCS7 -70.5dBm
11ax HT20 MCS9 -68dBm
11ax HT40 MCS9 -64.5dBm
Wireless Security Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering, Enable/Disable SSID Broadcast
DHCP Server, Client, DHCP Client List
Transmission Power <20dBm
OTHERS
Network Services Enabled by Default Web Server
Manage and configure device through web or app
• Port: 80/443 Protocol: HTTP/HTTPS
DNS
DNS
• Port: 53 Protocol: UDP
DHCP/DHCPv6
IP address assignment
• Port: 67/547 Protocol: UDP
RNDIS Support Yes
System Requirement: Windows XP/7/8/10/11
Package Content Mobile Wi-Fi M7005
0.4m USB-C Cable
Quick Installation Guide
System Requirements Windows 11/10/8/7/Vista/XP, Mac OS, Android, iOS, Windows Phone
Certifications CE, RoHS
Environment Operating Temperature: 0~35 (32~95)
Storage Temperature: -20~60 (-4~140)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
